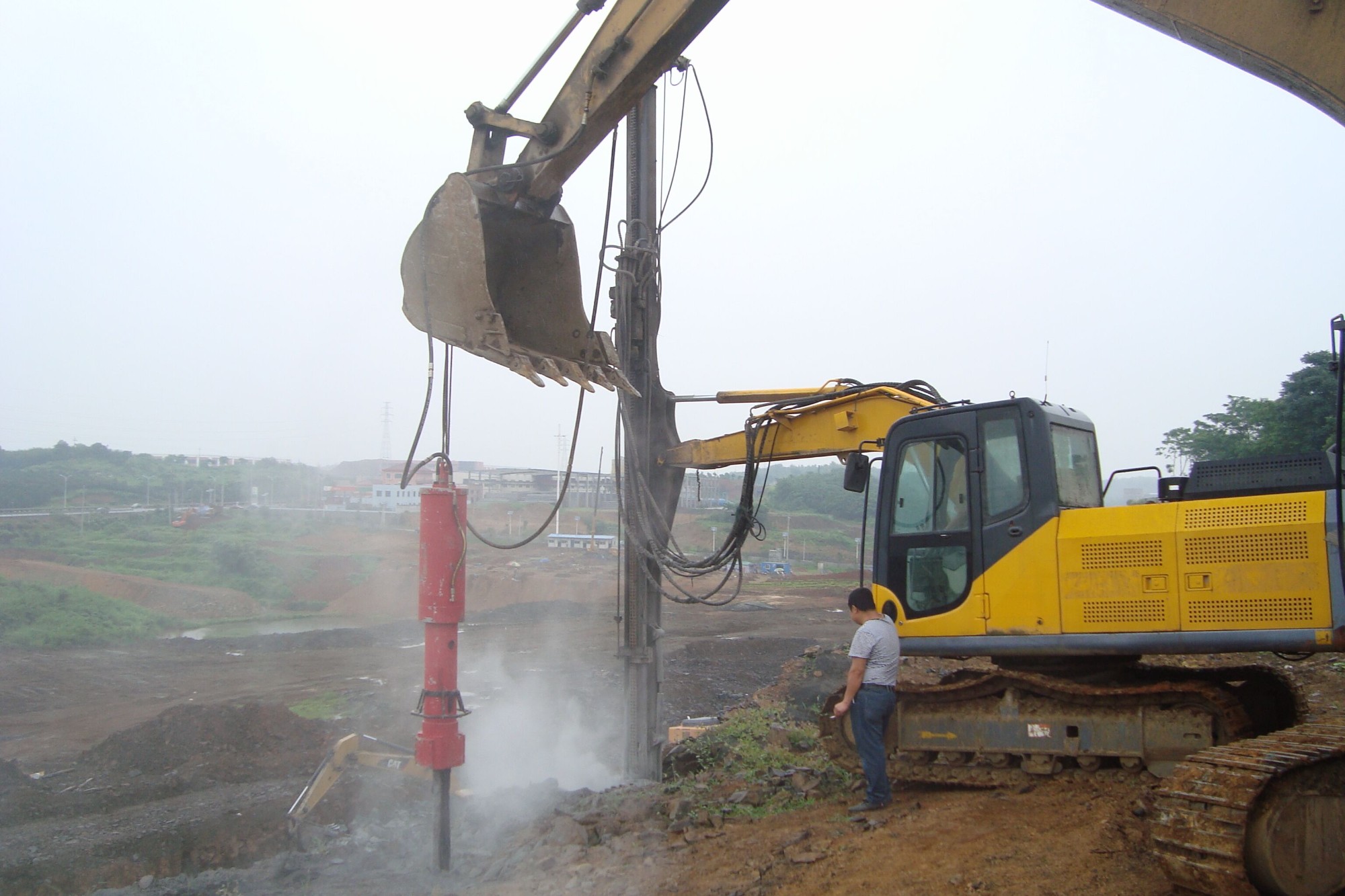

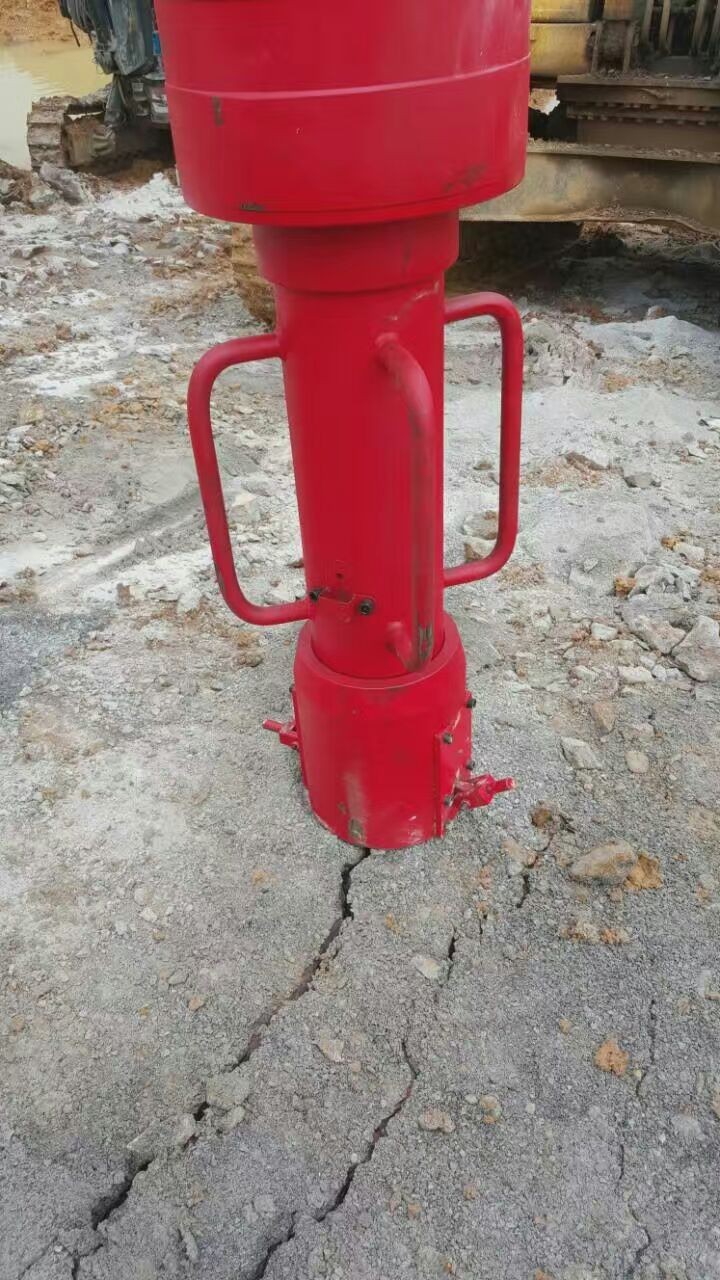

Excavator mounted hydraulic rock splitter
Excavator mounted hydraulic rock splitter
It has big powers and splitting rocks is very efficient,specially used for splitting big quantity of rocks.
| Model | Wedge length(Valid) | Borehole diameter | borehole depth(Min.) | Splitting force | weight |
| Cylinder diameter | |||||
| mm | mm | mm | mm | Tons | kg |
| BL160 | 500 | Φ76 | 800 | 1500~1800 | 230 |
| （Φ160mm） | 700 | 1000 | 240 | ||
| MW200 | 750 | Φ76 or Φ90 | 1400 | 1800~2100 | 500 |
| （Φ200mm） | 1000 | Φ90 or Φ100 | 1600 | 530 | |
| MW220 | 750 | Φ90 | 1400 | 2100~2300 | 600 |
| （Φ220mm） | 1000 | Φ100 or Φ110 | 1600 | 630 | |
| MW250 | 750 | Φ90 or Φ100 | 1400 | 2600~4300 | 820 |
| （Φ250mm） | 1000 | Φ100 or Φ110 | 1600 | 2600~4300 | 860 |
| MW300 | 750 | Φ90 or Φ100 | 1400 | 3750~5500 | 930 |
| （Φ300mm） | 1000 | Φ100 or Φ110 | 1600 | 3750~5500 | 970 |
